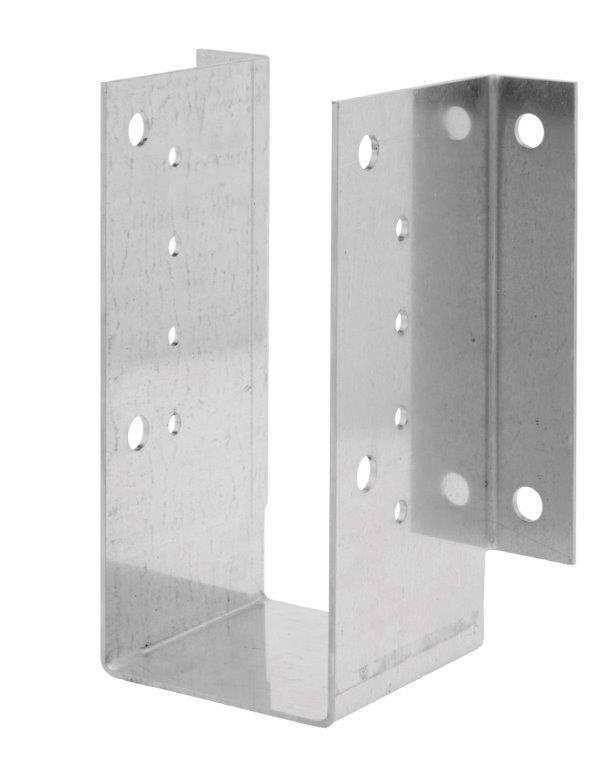

GBE

Balkenschuh mit außenliegenden Flanschen

Speziell für Brettschichtholz entwickelt. Befestigung an Holz oder Beton möglich. Kann für große Nebenträgerdimensionen hergestellt werden.

Technisches Datenblatt

CE Kennzeichnung

ETA

Nutzungsklasse 2

Galvanisch verzinkter Stahl 20µm

EPD

Produkt-Details

Bilder

Eigenschaften

Material

Stahlsorte:

S250 GD + Z275 gemäß DIN EN10346

Korrosionsschutz:
275 g/m2 beidseitig – entsprechend einer Zinkschichtdicke von ca. 20 μm

Blechdicke: 4 mm

Vorteile

Befestigung mit Bolzen
Viele Anwendungsmöglichkeiten
Geringe Achs- und Randabstände
Rationelle und wirtschaftliche Montage: vormontierte Mutter und Unterlegscheibe
Verringerter Bohraufwand: Ø-Bohren = Ø-Gewinde
Angeformter Schlagzapfen am Dübelkopf verhindert Beschädigung des Gewindes bei der Montage

Anwendung

Anwendbare Materialien

Auflager:
Beton, Stahl

Aufzulagerndes Bauteil:
Holz, Holzwerkstoffe

Anwendungsbereich

Für Anschlüsse von Nebenträgern aus Holz oder Holzwerkstoffen an Hauptträger/Stützen aus Beton/Stahl.

Technische Daten

Abmessungen

Abmessungen

Artikel	Abmessungen [mm]									Gewicht [kg]
	A	B	C	D	F	t	Löcher im Hauptträger	Löcher im Nebenträger
	A	B	C	D	F	t	Ø18	Ø11	Ø18
GBE600/90/4	90	255	145	54	155	4	4	6	4	3.3
GBE750/90/4		330	145	54	155	4	4	8	4	4.3
GBE900/90/4		405	145	54	155	4	6	12	6	5.2
GBE1050/90/4		480	145	54	155	4	6	14	6	6.1
GBE1200/90/4		555	145	54	155	4	8	18	8	7
GBE600/100/4	100	250	145	54	155	4	4	6	4	3.3
GBE750/100/4		325	145	54	155	4	4	8	4	4.3
GBE900/100/4		400	145	54	155	4	6	12	6	5.2
GBE1050/100/4		475	145	54	155	4	6	14	6	6.1
GBE1200/100/4		550	145	54	155	4	8	18	8	7
GBE600/104/4	104	248	145	54	155	4	4	6	4	3.3
GBE750/104/4		323	145	54	155	4	4	8	4	4.3
GBE900/104/4		398	145	54	155	4	6	12	6	5.2
GBE1050/104/4		473	145	54	155	4	6	14	6	6.1
GBE1200/104/4		548	145	54	155	4	8	18	8	7
GBE600/114/4	114	243	145	54	155	4	4	6	4	3.3
GBE750/114/4		318	145	54	155	4	4	8	4	4.3
GBE900/114/4		393	145	54	155	4	6	12	6	5.2
GBE1050/114/4		468	145	54	155	4	6	14	6	6.1
GBE1200/114/4		543	145	54	155	4	8	18	8	7
GBE600/120/4	120	240	145	54	155	4	4	6	4	3.3
GBE750/120/4		315	145	54	155	4	4	8	4	4.3
GBE900/120/4		390	145	54	155	4	6	12	6	5.2
GBE1050/120/4		465	145	54	155	4	6	14	6	6.1
GBE1200/120/4		540	145	54	155	4	8	18	8	7
GBE600/138/4	138	231	145	54	155	4	4	6	4	3.3
GBE750/138/4		306	145	54	155	4	4	8	4	4.3
GBE900/138/4		381	145	54	155	4	6	12	6	5.2
GBE1050/138/4		456	145	54	155	4	6	14	6	6.1
GBE1200/138/4		531	145	54	155	4	8	18	8	7
GBE1350/138/4		606	145	54	155	4	8	20	8	8
GBE1500/138/4		681	145	54	155	4	10	24	10	8.9
GBE600/140/4	140	230	145	54	155	4	4	6	4	3.3
GBE750/140/4		305	145	54	155	4	4	8	4	4.3
GBE900/140/4		380	145	54	155	4	6	12	6	5.2
GBE1050/140/4		455	145	54	155	4	6	14	6	6.1
GBE1200/140/4		530	145	54	155	4	8	18	8	7
GBE1350/140/4		605	145	54	155	4	8	20	8	8
GBE1500/140/4		680	145	54	155	4	10	24	10	8.9
GBE600/160/4	160	220	145	54	155	4	4	6	4	3.3
GBE750/160/4		295	145	54	155	4	4	8	4	4.3
GBE900/160/4		370	145	54	155	4	6	12	6	5.2
GBE1050/160/4		445	145	54	155	4	6	14	6	6.1
GBE1200/160/4		520	145	54	155	4	8	18	8	7
GBE1350/160/4		595	145	54	155	4	8	20	8	8
GBE1500/160/4		670	145	54	155	4	10	24	10	8.9
GBE600/162/4	162	219	145	54	155	4	4	6	4	3.3
GBE750/162/4		294	145	54	155	4	4	8	4	4.3
GBE900/162/4		369	145	54	155	4	6	12	6	5.2
GBE1050/162/4		444	145	54	155	4	6	14	6	6.1
GBE1200/162/4		519	145	54	155	4	8	18	8	7
GBE1350/162/4		594	145	54	155	4	8	20	8	8
GBE1500/162/4		669	145	54	155	4	10	24	10	8.9
GBE600/180/4	180	210	145	54	155	4	4	6	4	3.3
GBE750/180/4		285	145	54	155	4	4	8	4	4.3
GBE900/180/4		360	145	54	155	4	6	12	6	5.2
GBE1050/180/4		435	145	54	155	4	6	14	6	6.1
GBE1200/180/4		510	145	54	155	4	8	18	8	7
GBE1350/180/4		585	145	54	155	4	8	20	8	8
GBE1500/180/4		660	145	54	155	4	10	24	10	8.9
GBE600/186/4	186	207	145	54	155	4	4	6	4	3.3
GBE750/186/4		282	145	54	155	4	4	8	4	4.3
GBE900/186/4		357	145	54	155	4	6	12	6	5.2
GBE1050/186/4		432	145	54	155	4	6	14	6	6.1
GBE1200/186/4		507	145	54	155	4	8	18	8	7
GBE1350/186/4		582	145	54	155	4	8	20	8	8
GBE1500/186/4		657	145	54	155	4	10	24	10	8.9
GBE600/200/4	200	200	145	54	155	4	4	6	4	3.3
GBE750/200/4		275	145	54	155	4	4	8	4	4.3
GBE900/200/4		350	145	54	155	4	6	12	6	5.2
GBE1050/200/4		425	145	54	155	4	6	14	6	6.1
GBE1200/200/4		500	145	54	155	4	8	18	8	7
GBE1350/200/4		575	145	54	155	4	8	20	8	8
GBE1500/200/4		650	145	54	155	4	10	24	10	8.9
GBE600/210/4	210	195	145	54	155	4	4	6	4	3.3
GBE750/210/4		270	145	54	155	4	4	8	4	4.3
GBE900/210/4		345	145	54	155	4	6	12	6	5.2
GBE1050/210/4		420	145	54	155	4	6	14	6	6.1
GBE1200/210/4		495	145	54	155	4	8	18	8	7
GBE1350/210/4		570	145	54	155	4	8	20	8	8
GBE1500/210/4		645	145	54	155	4	10	24	10	8.9
GBE600/220/4	220	190	145	54	155	4	4	6	4	3.3
GBE750/220/4		265	145	54	155	4	4	8	4	4.3
GBE900/220/4		340	145	54	155	4	6	12	6	5.2
GBE1050/220/4		415	145	54	155	4	6	14	6	6.1
GBE1200/220/4		490	145	54	155	4	8	18	8	7
GBE1350/220/4		565	145	54	155	4	8	20	8	8
GBE1500/220/4		640	145	54	155	4	10	24	10	8.9

Die GBE/GBI Grundformen gibt es ins Standardlängen ab 600 mm bis 1500 mm, in Schritten von 150 mm.

Die GBE/GBI Artikelnummern setzten sich wie folgt zusammen:

Grundform / Breite des Balkenschuhs / Blechdicke

Charakteristische Tragfähigkeiten bei Brettschichtholz GL24c

Artikel	Charakter. Tragfähigkeit - Holz an Holz	Charakter. Tragfähigkeiten - Holz GL24c [kN]
	A	R_1.k	R_2.k	R_3.k	R_4.k
	A	Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6
GBE600/90/4	90	34.5	19.3	12.9	25.6
GBE750/90/4		38.2	29.4	12.9	36.3
GBE900/90/4		69.6	43.5	12.9	47
GBE1050/90/4		69.6	49.8	12.9	57.7
GBE1200/90/4		98.8	67.3	12.9	68.4
GBE600/100/4	100	34.5	19.3	12.9	25.6
GBE750/100/4		38.2	30.8	12.9	36.3
GBE900/100/4		69.6	45.4	12.9	47
GBE1050/100/4		69.6	53.7	12.9	57.7
GBE1200/100/4		103.7	72.8	12.9	68.4
GBE600/104/4	104	34.5	19.3	12.9	25.6
GBE750/104/4		38.2	30.8	12.9	36.3
GBE900/104/4		69.6	45.4	12.9	47
GBE1050/104/4		69.6	53.7	12.9	57.7
GBE1200/104/4		103.7	72.8	12.9	68.4
GBE600/114/4	114	34.5	19.3	12.9	25.6
GBE750/114/4		38.2	30.8	12.9	36.3
GBE900/114/4		69.6	45.4	12.9	47
GBE1050/114/4		69.6	53.7	12.9	57.7
GBE1200/114/4		103.7	72.8	12.9	68.4
GBE600/120/4	120	34.5	19.3	12.9	25.6
GBE750/120/4		38.2	30.8	12.9	36.3
GBE900/120/4		69.6	45.4	12.9	47
GBE1050/120/4		69.6	53.7	12.9	57.7
GBE1200/120/4		103.7	72.8	12.9	68.4
GBE600/138/4	138	34.5	19.3	12.9	25.6
GBE750/138/4		38.2	30.8	12.9	36.3
GBE900/138/4		69.6	45.4	12.9	47
GBE1050/138/4		69.6	53.7	12.9	57.7
GBE1200/138/4		103.7	72.8	12.9	68.4
GBE1350/138/4		103.7	79.4	12.9	79.1
GBE1500/138/4		129.6	101.1	12.9	89.9
GBE600/140/4	140	34.5	19.3	12.9	25.6
GBE750/140/4		38.2	30.8	12.9	36.3
GBE900/140/4		69.6	45.4	12.9	47
GBE1050/140/4		69.6	53.7	12.9	57.7
GBE1200/140/4		103.7	72.8	12.9	68.4
GBE1350/140/4		103.7	79.4	12.9	79.1
GBE1500/140/4		129.6	101.1	12.9	89.9
GBE600/160/4	160	34.5	19.3	12.9	25.6
GBE750/160/4		38.2	30.8	12.9	36.3
GBE900/160/4		69.6	45.4	12.9	47
GBE1050/160/4		69.6	53.7	12.9	57.7
GBE1200/160/4		103.7	72.8	12.9	68.4
GBE1350/160/4		103.7	79.4	12.9	79.1
GBE1500/160/4		129.6	101.1	12.9	89.9
GBE600/162/4	162	34.5	19.3	12.9	25.6
GBE750/162/4		38.2	30.8	12.9	36.3
GBE900/162/4		69.6	45.4	12.9	47
GBE1050/162/4		69.6	53.7	12.9	57.7
GBE1200/162/4		103.7	72.8	12.9	68.4
GBE1350/162/4		103.7	79.4	12.9	79.1
GBE1500/162/4		129.6	101.1	12.9	89.9
GBE600/180/4	180	34.5	19.3	12.9	25.6
GBE750/180/4		38.2	30.8	12.9	36.3
GBE900/180/4		69.6	45.4	12.9	47
GBE1050/180/4		69.6	53.7	12.9	57.7
GBE1200/180/4		103.7	72.8	12.9	68.4
GBE1350/180/4		103.7	79.4	12.9	79.1
GBE1500/180/4		129.6	101.1	12.9	89.9
GBE600/186/4	186	34.5	19.3	12.9	25.6
GBE750/186/4		38.2	30.8	12.9	36.3
GBE900/186/4		69.6	45.4	12.9	47
GBE1050/186/4		69.6	53.7	12.9	57.7
GBE1200/186/4		103.7	72.8	12.9	68.4
GBE1350/186/4		103.7	79.4	12.9	79.1
GBE1500/186/4		129.6	101.1	12.9	89.9
GBE600/200/4	200	34.5	19.3	12.9	25.6
GBE750/200/4		38.2	30.8	12.9	36.3
GBE900/200/4		69.6	45.4	12.9	47
GBE1050/200/4		69.6	53.7	12.9	57.7
GBE1200/200/4		103.7	72.8	12.9	68.4
GBE1350/200/4		103.7	79.4	12.9	79.1
GBE1500/200/4		129.6	101.1	12.9	89.9
GBE600/210/4	210	34.5	19.3	12.9	25.6
GBE750/210/4		38.2	30.8	12.9	36.3
GBE900/210/4		69.6	45.4	12.9	47
GBE1050/210/4		69.6	53.7	12.9	57.7
GBE1200/210/4		103.7	72.8	12.9	68.4
GBE1350/210/4		103.7	79.4	12.9	79.1
GBE1500/210/4		129.6	101.1	12.9	89.9
GBE600/220/4	220	34.5	19.3	12.9	25.6
GBE750/220/4		38.2	30.8	12.9	36.3
GBE900/220/4		69.6	45.4	12.9	47
GBE1050/220/4		69.6	53.7	12.9	57.7
GBE1200/220/4		103.7	72.8	12.9	68.4
GBE1350/220/4		103.7	79.4	12.9	79.1
GBE1500/220/4		129.6	101.1	12.9	89.9

Die Auswahl in dieser Tabelle sind Beispiele, andere Dimensionen können hergestellt werden.

Bolzen hier Ø16 der Güte 4.6

Hauptträger ist 210 mm breit.

Charakteristische Tragfähigkeiten - Holz an Beton

Artikel	A	Charakter. Tragfähigkeit- Holz GL24c [kN]
		R_1.k	R_2.k	R_3.k	R_4.k
		Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6	Bolzen Ø 16 - Güte 4.6
GBE600/90/4	90	34.5	19.3	12.9	25.6
GBE750/90/4		58	29.4	12.9	36.3
GBE900/90/4		75	43.5	12.9	47
GBE1050/90/4		81.3	49.8	12.9	57.7
GBE1200/90/4		98.8	67.3	12.9	68.4
GBE600/100/4	100	34.5	19.3	12.9	25.6
GBE750/100/4		58	30.8	12.9	36.3
GBE900/100/4		76.9	45.4	12.9	47
GBE1050/100/4		85.2	53.7	12.9	57.7
GBE1200/100/4		104.3	72.8	12.9	68.4
GBE600/104/4	104	34.5	19.3	12.9	25.6
GBE750/104/4		58	30.8	12.9	36.3
GBE900/104/4		76.9	45.4	12.9	47
GBE1050/104/4		85.2	53.7	12.9	57.7
GBE1200/104/4		104.3	72.8	12.9	68.4
GBE600/114/4	114	34.5	19.3	12.9	25.6
GBE750/114/4		58	30.8	12.9	36.3
GBE900/114/4		76.9	45.4	12.9	47
GBE1050/114/4		85.2	53.7	12.9	57.7
GBE1200/114/4		104.3	72.8	12.9	68.4
GBE600/120/4	120	34.5	19.3	12.9	25.6
GBE750/120/4		58	30.8	12.9	36.3
GBE900/120/4		76.9	45.4	12.9	47
GBE1050/120/4		85.2	53.7	12.9	57.7
GBE1200/120/4		104.3	72.8	12.9	68.4
GBE600/138/4	138	34.5	19.3	12.9	25.6
GBE750/138/4		58	30.8	12.9	36.3
GBE900/138/4		76.9	45.4	12.9	47
GBE1050/138/4		85.2	53.7	12.9	57.7
GBE1200/138/4		104.3	72.8	12.9	68.4
GBE1350/138/4		110.9	79.4	12.9	79.1
GBE1500/138/4		132.6	101.1	12.9	89.9
GBE600/140/4	140	34.5	19.3	12.9	25.6
GBE750/140/4		58	30.8	12.9	36.3
GBE900/140/4		76.9	45.4	12.9	47
GBE1050/140/4		85.2	53.7	12.9	57.7
GBE1200/140/4		104.3	72.8	12.9	68.4
GBE1350/140/4		110.9	79.4	12.9	79.1
GBE1500/140/4		132.6	101.1	12.9	89.9
GBE600/160/4	160	34.5	19.3	12.9	25.6
GBE750/160/4		58	30.8	12.9	36.3
GBE900/160/4		76.9	45.4	12.9	47
GBE1050/160/4		85.2	53.7	12.9	57.7
GBE1200/160/4		104.3	72.8	12.9	68.4
GBE1350/160/4		110.9	79.4	12.9	79.1
GBE1500/160/4		132.6	101.1	12.9	89.9
GBE600/162/4	162	34.5	19.3	12.9	25.6
GBE750/162/4		58	30.8	12.9	36.3
GBE900/162/4		76.9	45.4	12.9	47
GBE1050/162/4		85.2	53.7	12.9	57.7
GBE1200/162/4		104.3	72.8	12.9	68.4
GBE1350/162/4		110.9	79.4	12.9	79.1
GBE1500/162/4		132.6	101.1	12.9	89.9
GBE600/180/4	180	34.5	19.3	12.9	25.6
GBE750/180/4		58	30.8	12.9	36.3
GBE900/180/4		76.9	45.4	12.9	47
GBE1050/180/4		85.2	53.7	12.9	57.7
GBE1200/180/4		104.3	72.8	12.9	68.4
GBE1350/180/4		110.9	79.4	12.9	79.1
GBE1500/180/4		132.6	101.1	12.9	89.9
GBE600/186/4	186	34.5	19.3	12.9	25.6
GBE750/186/4		58	30.8	12.9	36.3
GBE900/186/4		76.9	45.4	12.9	47
GBE1050/186/4		85.2	53.7	12.9	57.7
GBE1200/186/4		104.3	72.8	12.9	68.4
GBE1350/186/4		110.9	79.4	12.9	79.1
GBE1500/186/4		132.6	101.1	12.9	89.9
GBE600/200/4	200	34.5	19.3	12.9	25.6
GBE750/200/4		58	30.8	12.9	36.3
GBE900/200/4		76.9	45.4	12.9	47
GBE1050/200/4		85.2	53.7	12.9	57.7
GBE1200/200/4		104.3	72.8	12.9	68.4
GBE1350/200/4		110.9	79.4	12.9	79.1
GBE1500/200/4		132.6	101.1	12.9	89.9
GBE600/210/4	210	34.5	19.3	12.9	25.6
GBE750/210/4		58	30.8	12.9	36.3
GBE900/210/4		76.9	45.4	12.9	47
GBE1050/210/4		85.2	53.7	12.9	57.7
GBE1200/210/4		104.3	72.8	12.9	68.4
GBE1350/210/4		110.9	79.4	12.9	79.1
GBE1500/210/4		132.6	101.1	12.9	89.9
GBE600/220/4	220	34.5	19.3	12.9	25.6
GBE750/220/4		58	30.8	12.9	36.3
GBE900/220/4		76.9	45.4	12.9	47
GBE1050/220/4		85.2	53.7	12.9	57.7
GBE1200/220/4		104.3	72.8	12.9	68.4
GBE1350/220/4		110.9	79.4	12.9	79.1
GBE1500/220/4		132.6	101.1	12.9	89.9
