GLI 2.5

Balkenschuhe GLI

Balkenschuhe GLI eignen sich vornehmlich zur Befestigung größerer Brettschichthölzer an Holz. Sie dienen speziell den Anschlüssen mit höheren BSH Querschnitten.

CE Kennzeichnung
ETA
Nutzungsklasse 2
Innen
Galvanisch verzinkter Stahl Z275

Produkt-Details

Bilder

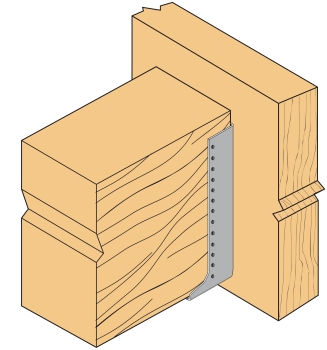

Clouage total sur bois

Eigenschaften

Material

Material

Stahlqualität:

S 250 GD +Z 275 gemäß DIN EN 10346

Korrosionsschutz:

275 g/m2 beidseitig - entsprechend einer Zinkschichtdicke von ca. 20 μm

Vorteile

Schnelle und einfache Installation

Anwendung

Anwendbare Materialien

Auflager:

  • Holz, Holzwerkstoffe

Aufzulagerndes Bauteil:

  • Holz, Holzwerkstoffe

Anwendungsbereich

  • Anschlüsse von Nebenträgern aus Holz oder Holzwerkstoffen an Hauptträger/ Stützen aus Holz/Holzwerkstoffen

Technische Daten

Abmessungen

Abmessungen der Produktpalette

Artikel Grundform [mm] A B C
GLI500/2.5X 500 76-160 (500-A)2 90
GLI540/2.5X 540 76-160 (540-A)/2 90
GLI600/2.5X 600 76-160 (600-A)/2 90
GLI660/2.5X 660 76-160 (660-A)/2 90
GLI720/2.5X 720 76-160 (720-A)/2 90

.

Abmessungen

Artikel Abmessungen des Nebenträgers [mm] Abmessungen [mm] Löcher im Hauptträger Löcher im Nebenträger
Breite Höhe [mm] A B C D F t Ø5 Ø13 Ø5
Min. Max. Min. Max.
GLI540/80/2.5 78 80 240 345 80 230 90 38.5 95 2.5 30 4 17
GLI600/80/2.5 78 80 270 390 80 260 90 38.5 95 2.5 36 4 20
GLI660/80/2.5 78 80 300 435 80 290 90 38.5 95 2.5 40 6 23
GLI720/80/2.5 78 80 330 480 80 320 90 38.5 95 2.5 46 6 26
GLI780/80/2.5 78 80 360 525 80 350 90 38.5 95 2.5 48 6 29
GLI840/80/2.5 78 80 390 570 80 380 90 38.5 95 2.5 54 6 32
GLI900/80/2.5 78 80 420 615 80 410 90 38.5 95 2.5 60 6 35
GLI960/80/2.5 78 80 450 660 80 440 90 38.5 95 2.5 64 8 38
GLI1020/80/2.5 78 80 480 705 80 470 90 38.5 95 2.5 70 8 41
GLI540/90/2.5 88 90 235 337 90 225 90 38.5 95 2.5 30 4 17
GLI600/90/2.5 88 90 265 382 90 255 90 38.5 95 2.5 36 4 20
GLI660/90/2.5 88 90 295 427 90 285 90 38.5 95 2.5 40 6 23
GLI720/90/2.5 88 90 325 472 90 315 90 38.5 95 2.5 46 6 26
GLI780/90/2.5 88 90 355 517 90 345 90 38.5 95 2.5 48 6 29
GLI840/90/2.5 88 90 385 562 90 375 90 38.5 95 2.5 54 6 32
GLI900/90/2.5 88 90 415 607 90 405 90 38.5 95 2.5 60 6 35
GLI960/90/2.5 88 90 445 652 90 435 90 38.5 95 2.5 64 8 38
GLI1020/90/2.5 88 90 475 697 90 465 90 38.5 95 2.5 70 8 41
GLI540/100/2.5 98 100 230 330 100 220 90 38.5 95 2.5 30 4 17
GLI600/100/2.5 98 100 260 375 100 250 90 38.5 95 2.5 36 4 20
GLI660/100/2.5 98 100 290 420 100 280 90 38.5 95 2.5 40 6 23
GLI720/100/2.5 98 100 320 465 100 310 90 38.5 95 2.5 46 6 26
GLI780/100/2.5 98 100 350 510 100 340 90 38.5 95 2.5 48 6 29
GLI840/100/2.5 98 100 380 555 100 370 90 38.5 95 2.5 54 6 32
GLI900/100/2.5 98 100 410 600 100 400 90 38.5 95 2.5 60 6 35
GLI960/100/2.5 98 100 440 645 100 430 90 38.5 95 2.5 64 8 38
GLI1020/100/2.5 98 100 470 690 100 460 90 38.5 95 2.5 70 8 41
GLI540/120/2.5 118 120 220 315 120 210 90 38.5 95 2.5 30 4 17
GLI600/120/2.5 118 120 250 360 120 240 90 38.5 95 2.5 36 4 20
GLI660/120/2.5 118 120 280 405 120 270 90 38.5 95 2.5 40 6 23
GLI720/120/2.5 118 120 310 450 120 300 90 38.5 95 2.5 46 6 26
GLI780/120/2.5 118 120 340 495 120 330 90 38.5 95 2.5 48 6 29
GLI840/120/2.5 118 120 370 540 120 360 90 38.5 95 2.5 54 6 32
GLI900/120/2.5 118 120 400 585 120 390 90 38.5 95 2.5 60 6 35
GLI960/120/2.5 118 120 430 630 120 420 90 38.5 95 2.5 64 8 38
GLI1020/120/2.5 118 120 460 675 120 450 90 38.5 95 2.5 70 8 41
GLI540/140/2.5 138 140 210 300 140 200 90 38.5 95 2.5 30 4 17
GLI600/140/2.5 138 140 240 345 140 230 90 38.5 95 2.5 36 4 20
GLI660/140/2.5 138 140 270 390 140 260 90 38.5 95 2.5 40 6 23
GLI720/140/2.5 138 140 300 435 140 290 90 38.5 95 2.5 46 6 26
GLI780/140/2.5 138 140 330 480 140 320 90 38.5 95 2.5 48 6 29
GLI840/140/2.5 138 140 360 525 140 350 90 38.5 95 2.5 54 6 32
GLI900/140/2.5 138 140 390 570 140 380 90 38.5 95 2.5 60 6 35
GLI960/140/2.5 138 140 420 615 140 410 90 38.5 95 2.5 64 8 38
GLI1020/140/2.5 138 140 450 660 140 440 90 38.5 95 2.5 70 8 41
GLI500/160/2.5 158 160 180 255 160 170 90 38.5 95 2.5 26 4 15
GLI540/160/2.5 158 160 200 285 160 190 90 38.5 95 2.5 30 4 17
GLI600/160/2.5 158 160 230 330 160 220 90 38.5 95 2.5 36 4 20
GLI660/160/2.5 158 160 260 375 160 250 90 38.5 95 2.5 40 6 23
GLI720/160/2.5 158 160 290 420 160 280 90 38.5 95 2.5 46 6 26
GLI780/160/2.5 158 160 320 465 160 310 90 38.5 95 2.5 48 6 29
GLI840/160/2.5 158 160 350 510 160 340 90 38.5 95 2.5 54 6 32
GLI900/160/2.5 158 160 380 555 160 370 90 38.5 95 2.5 60 6 35
GLI960/160/2.5 158 160 410 600 160 400 90 38.5 95 2.5 64 8 38
GLI1020/160/2.5 158 160 440 645 160 430 90 38.5 95 2.5 70 8 41
GLI500/180/2.5 178 180 170 240 180 160 90 38.5 95 2.5 18 4 13
GLI540/180/2.5 178 180 190 270 180 180 90 38.5 95 2.5 18 4 13
GLI600/180/2.5 178 180 220 315 180 210 90 38.5 95 2.5 24 4 16
GLI660/180/2.5 178 180 250 360 180 240 90 38.5 95 2.5 28 6 19
GLI720/180/2.5 178 180 280 405 180 270 90 38.5 95 2.5 34 6 22
GLI780/180/2.5 178 180 310 450 180 300 90 38.5 95 2.5 40 6 25
GLI840/180/2.5 178 180 340 495 180 330 90 38.5 95 2.5 46 6 28
GLI900/180/2.5 178 180 370 540 180 360 90 38.5 95 2.5 52 6 31
GLI960/180/2.5 178 180 400 585 180 390 90 38.5 95 2.5 58 6 34
GLI1020/180/2.5 178 180 430 630 180 420 90 38.5 95 2.5 62 8 37
GLI500/200/2.5 198 200 160 225 200 150 90 38.5 95 2.5 18 4 13
GLI540/200/2.5 198 200 180 255 200 170 90 38.5 95 2.5 18 4 13
GLI600/200/2.5 198 200 210 300 200 200 90 38.5 95 2.5 24 4 16
GLI660/200/2.5 198 200 240 345 200 230 90 38.5 95 2.5 28 6 19
GLI720/200/2.5 198 200 270 390 200 260 90 38.5 95 2.5 34 6 22
GLI780/200/2.5 198 200 300 435 200 290 90 38.5 95 2.5 40 6 25
GLI840/200/2.5 198 200 330 480 200 320 90 38.5 95 2.5 46 6 28
GLI900/200/2.5 198 200 360 525 200 350 90 38.5 95 2.5 52 6 31
GLI960/200/2.5 198 200 390 570 200 380 90 38.5 95 2.5 58 6 34
GLI1020/200/2.5 198 200 420 615 200 410 90 38.5 95 2.5 62 8 37
GLI540/220/2.5 218 220 170 240 220 160 90 38.5 95 2.5 18 4 13
GLI600/220/2.5 218 220 200 285 220 190 90 38.5 95 2.5 24 4 16
GLI660/220/2.5 218 220 230 330 220 220 90 38.5 95 2.5 28 6 19
GLI720/220/2.5 218 220 260 375 220 250 90 38.5 95 2.5 34 6 22
GLI780/220/2.5 218 220 290 420 220 280 90 38.5 95 2.5 40 6 25
GLI840/220/2.5 218 220 320 465 220 310 90 38.5 95 2.5 46 6 28
GLI900/220/2.5 218 220 350 510 220 340 90 38.5 95 2.5 52 6 31
GLI960/220/2.5 218 220 380 555 220 370 90 38.5 95 2.5 58 6 34
GLI1020/220/2.5 218 220 410 600 220 400 90 38.5 95 2.5 62 8 37
GLI540/240/2.5 238 240 160 225 240 150 90 38.5 95 2.5 18 4 13
GLI600/240/2.5 238 240 190 270 240 180 90 38.5 95 2.5 24 4 16
GLI660/240/2.5 238 240 220 315 240 210 90 38.5 95 2.5 28 6 19
GLI720/240/2.5 238 240 250 360 240 240 90 38.5 95 2.5 34 6 22
GLI780/240/2.5 238 240 280 405 240 270 90 38.5 95 2.5 40 6 25
GLI840/240/2.5 238 240 310 450 240 300 90 38.5 95 2.5 46 6 28
GLI900/240/2.5 238 240 340 495 240 330 90 38.5 95 2.5 52 6 31
GLI960/240/2.5 238 240 370 540 240 360 90 38.5 95 2.5 58 6 34
GLI1020/240/2.5 238 240 400 585 240 390 90 38.5 95 2.5 62 8 37

Charakteristische Tragfähigkeiten - Holz an Holz - Vollausnagelung

Artikel Charakteristische Tragfähigkeiten - Holz an Holz - Vollausnagelung
Verbindungsmittel Charakter. Tragfähigkeiten - Nadelholz C24 [kN]
Hauptträger Nebenträger R1.k R2.k R3.k R4.k
Anzahl Anzahl CNA4.0x50 CNA4.0x50 CNA4.0x50 CNA4.0x50
GLI540/80/2.5 30 17 37.2 33.5 8.5 13.7
GLI600/80/2.5 36 20 43.8 39.4 8.9 15.7
GLI660/80/2.5 40 23 50.4 45.3 9.2 17.6
GLI720/80/2.5 46 26 56.9 51.2 9.5 19.6
GLI780/80/2.5 48 29 63.5 57.2 10 21.6
GLI840/80/2.5 54 32 70.1 63.1 10.1 23.5
GLI900/80/2.5 60 35 76.7 69 10.2 27.4
GLI960/80/2.5 64 38 83.2 74.9 10.3 27.4
GLI1020/80/2.5 70 41 89.8 80.8 10.3 31.4
GLI540/90/2.5 30 17 37.2 33.5 9.3 13.7
GLI600/90/2.5 36 20 43.8 39.4 9.8 15.7
GLI660/90/2.5 40 23 50.4 45.3 10.2 17.6
GLI720/90/2.5 46 26 56.9 51.2 10.5 19.6
GLI780/90/2.5 48 29 63.5 57.2 11.1 21.6
GLI840/90/2.5 54 32 70.1 63.1 11.3 23.5
GLI900/90/2.5 60 35 76.7 69 11.4 27.4
GLI960/90/2.5 64 38 83.2 74.9 11.5 27.4
GLI1020/90/2.5 70 41 89.8 80.8 11.6 31.4
GLI540/100/2.5 30 17 37.2 33.5 10 13.7
GLI600/100/2.5 36 20 43.8 39.4 10.7 15.7
GLI660/100/2.5 40 23 50.4 45.3 11.1 17.6
GLI720/100/2.5 46 26 56.9 51.2 11.5 19.6
GLI780/100/2.5 48 29 63.5 57.2 12.2 21.6
GLI840/100/2.5 54 32 70.1 63.1 12.4 23.5
GLI900/100/2.5 60 35 76.7 69 12.6 27.4
GLI960/100/2.5 64 38 83.2 74.9 12.7 27.4
GLI1020/100/2.5 70 41 89.8 80.8 12.8 31.4
GLI540/120/2.5 30 17 37.2 33.5 11.3 13.7
GLI600/120/2.5 36 20 43.8 39.4 12.2 15.7
GLI660/120/2.5 40 23 50.4 45.3 12.8 17.6
GLI720/120/2.5 46 26 56.9 51.2 13.4 19.6
GLI780/120/2.5 48 29 63.5 57.2 14.3 21.6
GLI840/120/2.5 54 32 70.1 63.1 14.6 23.5
GLI900/120/2.5 60 35 76.7 69 14.8 27.4
GLI960/120/2.5 64 38 83.2 74.9 15 27.4
GLI1020/120/2.5 70 41 89.8 80.8 15.1 31.4
GLI540/140/2.5 30 17 37.2 33.5 12.3 13.7
GLI600/140/2.5 36 20 43.8 39.4 13.5 15.7
GLI660/140/2.5 40 23 50.4 45.3 14.3 17.6
GLI720/140/2.5 46 26 56.9 51.2 15.1 19.6
GLI780/140/2.5 48 29 63.5 57.2 16.1 21.6
GLI840/140/2.5 54 32 70.1 63.1 16.5 23.5
GLI900/140/2.5 60 35 76.7 69 16.8 27.4
GLI960/140/2.5 64 38 83.2 74.9 17.1 27.4
GLI1020/140/2.5 70 41 89.8 80.8 17.4 31.4
GLI500/160/2.5 26 15 32.9 29.1 12.1 11.8
GLI540/160/2.5 30 17 37.2 33.5 13.2 13.7
GLI600/160/2.5 36 20 43.8 39.4 14.5 15.7
GLI660/160/2.5 40 23 50.4 45.3 15.6 17.6
GLI720/160/2.5 46 26 56.9 51.2 16.5 19.6
GLI780/160/2.5 48 29 63.5 57.2 17.7 21.6
GLI840/160/2.5 54 32 70.1 63.1 18.3 23.5
GLI900/160/2.5 60 35 76.7 69 18.7 27.4
GLI960/160/2.5 64 38 83.2 74.9 19.1 27.4
GLI1020/160/2.5 70 41 89.8 80.8 19.5 31.4
GLI500/180/2.5 18 13 26 16.9 11.4 7.8
GLI540/180/2.5 18 13 28.5 16.9 11.3 7.8
GLI600/180/2.5 24 16 35 25.9 13.2 9.8
GLI660/180/2.5 28 19 41.6 34.3 14.8 11.8
GLI720/180/2.5 34 22 48.2 43.4 16.2 13.7
GLI780/180/2.5 40 25 54.8 49.3 17.3 17.6
GLI840/180/2.5 46 28 61.3 55.2 18.3 19.6
GLI900/180/2.5 52 31 67.9 61.1 19 23.5
GLI960/180/2.5 58 34 74.5 67 19.7 25.5
GLI1020/180/2.5 62 37 81 72.9 20.2 27.4
GLI500/200/2.5 18 13 24.1 16.9 11.7 7.8
GLI540/200/2.5 18 13 27.7 16.9 11.6 7.8
GLI600/200/2.5 24 16 35 25.9 13.7 9.8
GLI660/200/2.5 28 19 41.6 34.3 15.5 11.8
GLI720/200/2.5 34 22 48.2 43.4 17.1 13.7
GLI780/200/2.5 40 25 54.8 49.3 18.3 17.6
GLI840/200/2.5 46 28 61.3 55.2 19.4 19.6
GLI900/200/2.5 52 31 67.9 61.1 20.3 23.5
GLI960/200/2.5 58 34 74.5 67 21.2 25.5
GLI1020/200/2.5 62 37 81 72.9 21.8 27.4
GLI540/220/2.5 18 13 26 16.9 11.8 7.8
GLI600/220/2.5 24 16 35 25.9 14 9.8
GLI660/220/2.5 28 19 41.6 34.3 16 11.8
GLI720/220/2.5 34 22 48.2 43.4 17.7 13.7
GLI780/220/2.5 40 25 54.8 49.3 19.2 17.6
GLI840/220/2.5 46 28 61.3 55.2 20.5 19.6
GLI900/220/2.5 52 31 67.9 61.1 21.5 23.5
GLI960/220/2.5 58 34 74.5 67 22.5 25.5
GLI1020/220/2.5 62 37 81 72.9 23.3 27.4
GLI540/240/2.5 18 13 24.1 16.9 12 7.8
GLI600/240/2.5 24 16 34.7 25.9 14.3 9.8
GLI660/240/2.5 28 19 41.6 34.3 16.4 11.8
GLI720/240/2.5 34 22 48.2 43.4 18.3 13.7
GLI780/240/2.5 40 25 54.8 49.3 19.9 17.6
GLI840/240/2.5 46 28 61.3 55.2 21.4 19.6
GLI900/240/2.5 52 31 67.9 61.1 22.6 23.5
GLI960/240/2.5 58 34 74.5 67 23.7 25.5
GLI1020/240/2.5 62 37 81 72.9 24.6 27.4

A, B und C sind die inneren Abmessungen des Balkenschuhs.

Tragfähigkeiten - Balken an Balken - Teilausnagelung

Artikel Tragfähigkeiten - Balken an Balken - Teilausnagelung
Verbindungsmittel Charakter. Tragfähigkeiten - Nadelholz C24 [kN]
Hauptträger Nebenträger R1.k R2.k R3.k R4.k
Anzahl Anzahl CNA4.0x50 CNA4.0x50 CNA4.0x50 CNA4.0x50
GLI540/80/2.5 14 9 19.7 16.9 4.5 13.7
GLI600/80/2.5 16 10 21.9 19.7 4.5 15.7
GLI660/80/2.5 18 12 26.3 23.7 4.8 17.6
GLI720/80/2.5 20 14 30.7 27.6 5.2 19.6
GLI780/80/2.5 22 15 32.9 29.6 5.2 21.6
GLI840/80/2.5 24 16 35 31.5 5.2 23.5
GLI900/80/2.5 28 18 39.4 35.5 5.3 27.4
GLI960/80/2.5 28 20 43.8 39.4 5.5 27.4
GLI1020/80/2.5 32 21 46 41.4 5.3 31.4
GLI540/90/2.5 14 9 19.7 16.9 4.9 13.7
GLI600/90/2.5 16 10 21.9 19.7 5 15.7
GLI660/90/2.5 18 12 26.3 23.7 5.3 17.6
GLI720/90/2.5 20 14 30.7 27.6 5.8 19.6
GLI780/90/2.5 22 15 32.9 29.6 5.8 21.6
GLI840/90/2.5 24 16 35 31.5 5.8 23.5
GLI900/90/2.5 28 18 39.4 35.5 5.9 27.4
GLI960/90/2.5 28 20 43.8 39.4 6.1 27.4
GLI1020/90/2.5 32 21 46 41.4 5.9 31.4
GLI540/100/2.5 14 9 19.7 16.9 5.3 13.7
GLI600/100/2.5 16 10 21.9 19.7 5.4 15.7
GLI660/100/2.5 18 12 26.3 23.7 5.8 17.6
GLI720/100/2.5 20 14 30.7 27.6 6.3 19.6
GLI780/100/2.5 22 15 32.9 29.6 6.4 21.6
GLI840/100/2.5 24 16 35 31.5 6.3 23.5
GLI900/100/2.5 28 18 39.4 35.5 6.5 27.4
GLI960/100/2.5 28 20 43.8 39.4 6.8 27.4
GLI1020/100/2.5 32 21 46 41.4 6.6 31.4
GLI540/120/2.5 14 9 19.7 16.9 6 13.7
GLI600/120/2.5 16 10 21.9 19.7 6.2 15.7
GLI660/120/2.5 18 12 26.3 23.7 6.7 17.6
GLI720/120/2.5 20 14 30.7 27.6 7.3 19.6
GLI780/120/2.5 22 15 32.9 29.6 7.4 21.6
GLI840/120/2.5 24 16 35 31.5 7.4 23.5
GLI900/120/2.5 28 18 39.4 35.5 7.6 27.4
GLI960/120/2.5 28 20 43.8 39.4 8 27.4
GLI1020/120/2.5 32 21 46 41.4 7.8 31.4
GLI540/140/2.5 14 9 19.7 16.9 6.5 13.7
GLI600/140/2.5 16 10 21.9 19.7 6.8 15.7
GLI660/140/2.5 18 12 26.3 23.7 7.5 17.6
GLI720/140/2.5 20 14 30.7 27.6 8.2 19.6
GLI780/140/2.5 22 15 32.9 29.6 8.4 21.6
GLI840/140/2.5 24 16 35 31.5 8.4 23.5
GLI900/140/2.5 28 18 39.4 35.5 8.7 27.4
GLI960/140/2.5 28 20 43.8 39.4 9.1 27.4
GLI1020/140/2.5 32 21 46 41.4 8.9 31.4
GLI500/160/2.5 12 8 16.1 13.6 6.5 11.8
GLI540/160/2.5 14 9 19.7 16.9 7 13.7
GLI600/160/2.5 16 10 21.9 19.7 7.3 15.7
GLI660/160/2.5 18 12 26.3 23.7 8.1 17.6
GLI720/160/2.5 20 14 30.7 27.6 9 19.6
GLI780/160/2.5 22 15 32.9 29.6 9.2 21.6
GLI840/160/2.5 24 16 35 31.5 9.3 23.5
GLI900/160/2.5 28 18 39.4 35.5 9.7 27.4
GLI960/160/2.5 28 20 43.8 39.4 10.2 27.4
GLI1020/160/2.5 32 21 46 41.4 10 31.4
GLI500/180/2.5 8 7 12.4 7.7 6.2 7.8
GLI540/180/2.5 8 7 13.6 7.7 6.1 7.8
GLI600/180/2.5 10 8 17.5 10.7 6.7 9.8
GLI660/180/2.5 12 10 21.3 15.1 7.8 11.8
GLI720/180/2.5 14 12 25.8 18.4 9 13.7
GLI780/180/2.5 18 13 28.5 25.6 9 17.6
GLI840/180/2.5 20 14 30.7 27.6 9.2 19.6
GLI900/180/2.5 24 16 35 31.5 9.8 23.5
GLI960/180/2.5 26 18 39.4 35.5 10.6 25.5
GLI1020/180/2.5 28 19 41.6 37.4 10.4 27.4
GLI500/200/2.5 8 7 11.6 7.7 6.3 7.8
GLI540/200/2.5 8 7 13.1 7.7 6.3 7.8
GLI600/200/2.5 10 8 17.2 10.7 6.9 9.8
GLI660/200/2.5 12 10 20.7 15.1 8.2 11.8
GLI720/200/2.5 14 12 25.2 18.4 9.4 13.7
GLI780/200/2.5 18 13 28.5 25.6 9.6 17.6
GLI840/200/2.5 20 14 30.7 27.6 9.8 19.6
GLI900/200/2.5 24 16 35 31.5 10.5 23.5
GLI960/200/2.5 26 18 39.4 35.5 11.3 25.5
GLI1020/200/2.5 28 19 41.6 37.4 11.2 27.4
GLI540/220/2.5 8 7 12.4 7.7 6.4 7.8
GLI600/220/2.5 10 8 16.5 10.7 7.1 9.8
GLI660/220/2.5 12 10 20 15.1 8.4 11.8
GLI720/220/2.5 14 12 24.6 18.4 9.8 13.7
GLI780/220/2.5 18 13 28.5 25.6 10 17.6
GLI840/220/2.5 20 14 30.7 27.6 10.3 19.6
GLI900/220/2.5 24 16 35 31.5 11.1 23.5
GLI960/220/2.5 26 18 39.4 35.5 12.1 25.5
GLI1020/220/2.5 28 19 41.6 37.4 12 27.4
GLI540/240/2.5 8 7 11.6 7.7 6.5 7.8
GLI600/240/2.5 10 8 15.8 10.7 7.2 9.8
GLI660/240/2.5 12 10 19.2 15.1 8.7 11.8
GLI720/240/2.5 14 12 23.9 18.4 10.1 13.7
GLI780/240/2.5 18 13 28.5 25.6 10.4 17.6
GLI840/240/2.5 20 14 30.7 27.6 10.8 19.6
GLI900/240/2.5 24 16 35 31.5 11.7 23.5
GLI960/240/2.5 26 18 39.4 35.5 12.7 25.5
GLI1020/240/2.5 28 19 41.6 37.4 12.6 27.4

A, B und C sind die inneren Abmessungen des Balkenschuhs.

Installation

Installation

Befestigungsmittel

Die angegebenen Tragfähigkeiten des Verbinders sind gültig bei der Verwendung von CE gekennzeichneten Verbindungsmitteln nach ETA-04/0013.

Nebenträger:

CNA Kammnägel Ø 4.0x50 mm.
CNA Kammnägel Ø 4.0x35 mm bei einer Breite kleiner 64 mm.
CSA Schrauben Ø 5.0x40 mm.
CSA Schrauben Ø 5.0x35 mm bei einer Breite kleiner 60 mm.

Hauptträger:

CNA Kammnägel Ø 4.0x50 mm.
CSA Schrauben Ø 5.0x40 mm.

Eignungsnachweise

Technische Zulassung (ETA)

Verwandte Produkte
